Water Softener Regeneration: Cycles, Timing and Salt Use

Water softener regeneration is the part of the machine nobody watches. It runs at two in the morning, takes an hour or two, and sends 25 to 100 gallons of brine down the drain. Most people find out what a cycle is only when it stops working. Two settings on the control head, salt dose and what triggers the cycle, decide whether you buy a dozen bags of salt a year or three dozen.

The six phases, in the order they run

None of it makes sense without the beads. A softener tank holds polystyrene spheres loaded with sodium ions. Hard water runs down through the bed, calcium and magnesium grab hold, sodium comes off. Do that long enough and every exchange site holds calcium. The bed is spent. Regeneration reverses the chemistry by force, soaking the resin in brine strong enough to push the calcium back off.

• Backwash. Water is pushed up through the bed at high flow for 8 to 12 minutes. The resin lifts, sediment and iron wash to the drain, and channels that compacted over the week break up.
• Brine draw. An injector pulls concentrated salt solution from the brine tank slowly down through the resin. Slowly is the operative word. Contact time drives the exchange backward. Twenty to forty minutes.
• Slow rinse. On many valves not a separate step at all, just the tail of brine draw at the same low rate. Ten to twenty minutes.
• Fast rinse. Full flow downward for 5 to 10 minutes to clear residual brine and settle the bed. Shorten it and you get salty water at the tap in the morning.
• Brine tank refill. Measured water goes back into the salt tank to dissolve the next batch. That volume is what sets your salt dose, and almost nobody knows their own number.
• Return to service. The valve rotates back to the down-flow service position. Some heads run a short settling rinse first.

Manufacturers do not agree on how to count these. Some brochures say five stages, some six, some seven, splitting out the settling rinse. The disagreement is cosmetic: lift the bed, soak it in brine, rinse the brine out, mix a fresh batch. If a salesperson claims a seven-stage valve is more thorough than a rival’s five-stage, ask which physical step the rival skips. There usually is not one.

Timer, metered and demand heads compared

This is the biggest lever on your salt bill, and it gets pulled once, at purchase.

A clock head regenerates whether the bed needs it or not. Two people leave for a long weekend and the Tuesday cycle runs anyway. Twelve pounds of salt and 60 gallons of water, gone, to strip a bed that was still mostly fresh.

How much a meter saves depends on how the timer was set, and there is no honest national average. Installers set clock timers conservatively, because a callback about hard water costs them more than a bag of salt costs you. A timer on three days where four and a half is right throws away a third of its salt. A timer on seven days where five is right lets hard water through every Friday.

“Demand-initiated regeneration” is the phrase used in NSF/ANSI 44, the cation-exchange softener standard. Some state and local codes now require it on new installations, mostly in the Southwest, because softener discharge adds chloride wastewater plants cannot easily remove. A few California agencies have restricted salt-based softeners outright. Check your jurisdiction before saving $200 on a clock timer. I am not a licensed plumber, and adoption varies county by county.

Why 2 a.m. and not some other hour

Two reasons, and the obvious one is only half of it.

The obvious half is demand. During brine draw and rinse the unit either sends raw water around to the house or blocks service entirely. At 2 a.m. nobody is in the shower. The second half is that backwash needs real flow, 2 to 5 gallons per minute depending on tank diameter, uninterrupted for ten minutes. Start a dishwasher mid-backwash on a marginal well pump and the bed never lifts.

The hour is a factory default, not a law of physics. Every metered head lets you move it, and night-shift households should. If your family showers at 5 a.m., set the cycle for 11 p.m.

Can you use water during a cycle

Yes, and you will not enjoy it. Most single-tank valves put the house into internal bypass while they regenerate, so the taps still run. What comes out is raw water, and during brine draw it can taste faintly salty if the valve leaks brine into the bypass. Nothing dangerous. Do not run laundry through it, and do not top off an aquarium.

Some older and budget valves close service entirely for the hour. Twin tanks never have that problem, part of what the extra $800 to $2,000 buys. Most households do not need it. If the only cost of one tank is hard water at 2 a.m. while everyone is asleep, you are paying four figures for a problem you will never be awake for. They earn their price only on genuinely continuous demand.

Salt dose and the efficiency trade-off

Here is the part that quietly costs people money for a decade.

Resin capacity is not a fixed number. One cubic foot of standard 8 percent crosslinked resin removes roughly 16,000 grains at 4 pounds of salt, 24,000 at 9 pounds, and 30,000 at 15. More salt buys more capacity, at a worse and worse rate.

4 lb  -> 16,000 gr = 4,000 gr/lb
6 lb  -> 20,000 gr = 3,333 gr/lb
9 lb  -> 24,000 gr = 2,667 gr/lb
15 lb -> 30,000 gr = 2,000 gr/lb

15 lb buys 87% more capacity
for 275% more salt.

NSF/ANSI 44 draws a line through that curve. To carry an efficiency rating a softener must remove at least 3,350 grains per pound of salt at its rated capacity, and use no more than 15 pounds in one regeneration. Against the numbers above, that means low-dose programming, in the 4 to 6 pound band. A dealer selling that certification is selling a setting, and you can change a setting yourself in a minute.

So why run 15 pounds? Because a low dose leaves a band of calcium in the bottom of the bed that never gets stripped, and on very hard or iron-bearing water that band grows until real capacity falls below the nameplate. Ferrous iron in well water is the classic case, and the answer is almost never more salt but pre-treatment ahead of the softener, covered in the guide to softeners on well water and iron. High dose also means fewer cycles and less valve wear.

My default for city water at moderate hardness: buy more resin than you think you need, run about 8 to 9 pounds per cubic foot, and let a metered head pick the day. That usually lands on a cycle every 5 to 8 days. Sizing has arithmetic of its own, in the grain capacity math.

How often your unit should be cycling

Work it out yourself instead of trusting the installer’s default. You need hardness in grains per gallon, so if the lab report is in milligrams per liter, divide by 17.1. Over 180 mg/L, which is 10.5 grains, is very hard on the USGS scale. Multiply hardness by gallons per day, then divide usable capacity by that. Usable is not nameplate: a good head holds back 20 to 30 percent as reserve.

daily use  = 4 x 75 gal   = 300 gal
daily load = 300 x 15     = 4,500 gr
1 cu ft at 9 lb salt      = 24,000 gr
usable at 75%             = 18,000 gr
18,000 / 4,500            = 4 days

2 cu ft at 9 lb/cu ft:
usable                    = 36,000 gr
36,000 / 4,500            = 8 days

Doubling the resin doubles the interval. It does not cut the salt, because you still spend the same pounds per cubic foot on the same grains. Sizing up buys fewer cycles and a real reserve. Only the dose setting buys a smaller salt bill.

One genuine disagreement, before an installer programs your head. Many pad the entered hardness for dissolved iron, commonly 3 to 5 grains per gallon for every 1 ppm. Others call that treating a symptom, since a softener asked to remove iron fouls eventually anyway. Padding burns salt forever; an iron filter costs more up front and stops the fouling. What you should not accept is padding entered once and then forgotten, which is how a house at 12 grains ends up programmed at 25.

If your softener cycles every day, something is wrong: badly undersized, a hardness value fat-fingered at install, or a running toilet spinning the meter. If it has not cycled in three weeks and there are four of you, it is probably not regenerating at all.

Signs a regeneration did not work

Hard water coming back is the symptom. The cause is usually one of five things, and twenty minutes with a flashlight tells them apart.

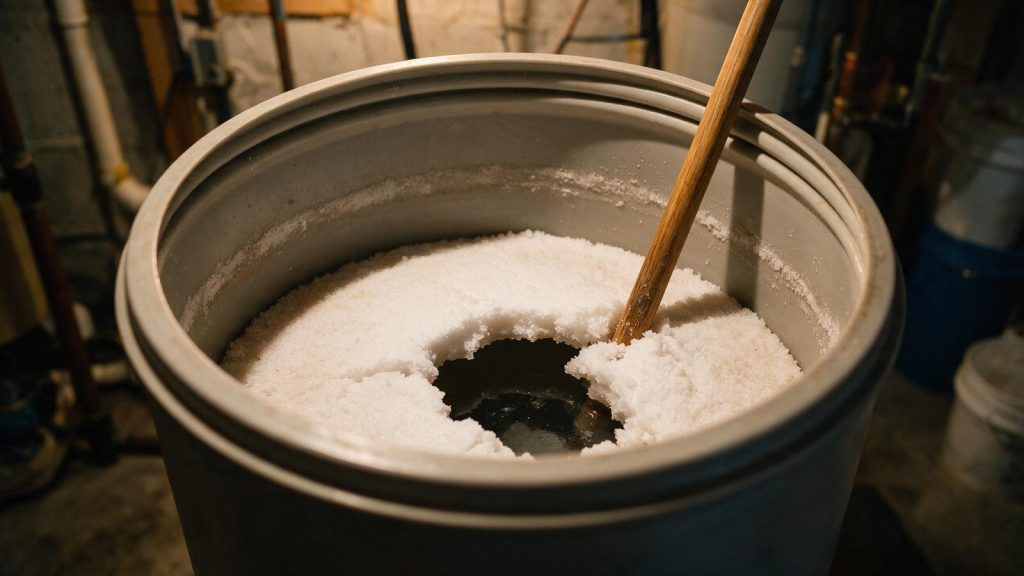

• Salt bridge. A crust of hardened salt spans the tank with an air gap underneath. The tank looks full and the water below is not touching salt. Push a broom handle straight down. If it hits a shelf and breaks through, that was it.
• Salt mushing. Recrystallized salt sludge at the bottom of the tank, blocking brine draw. Harder to spot than bridging, and it usually means shoveling the tank out.
• Clogged injector. The venturi that pulls brine is a small orifice. Sediment or iron blocks it and no brine gets drawn. The cycle runs, sounds normal, does nothing. The tell is a brine tank whose level never drops.
• Drain line restriction or kink. Backwash cannot reach the flow it needs, the bed never lifts, and over a few months the resin channels.
• Resin at end of life. Ten to fifteen years on chlorinated city water, sometimes half that with chloramine or iron. The bed holds less than it did and no amount of salt fixes it.

The cheapest diagnostic here is a $10 to $20 hardness test kit, strips or titration. Test the inlet and a soft tap the morning after a cycle. An outlet at 0 to 1 grain means the cycle worked and the problem is elsewhere. An outlet matching the inlet means it did not, and you have five suspects instead of a mystery. The routine that catches these early is in the quarterly maintenance schedule.

One more point, because it outranks the rest. A softener does not disinfect. If your water has a bacteriological problem, regeneration cannot help. Total coliform is regulated under the EPA’s total coliform rule for public systems, and private wells are not covered at all. Send a sample to a certified lab or call your county health department first.

What all this costs per year

Salt runs roughly $6 to $14 for a 40-pound bag, the spread being regional freight plus grade. Potassium chloride costs three to four times as much and regenerates slightly less effectively per pound. Most households do not need it. The sodium a softener adds is small next to a slice of bread, though a physician-ordered sodium restriction is a conversation for the physician.

Now the arithmetic. Same family of four, 15 grains per gallon, one cubic foot of resin. A metered head at 9 pounds regenerates about 91 times a year, roughly 820 pounds of salt, call it 20 bags. A clock timer on three days at 12 pounds regenerates 122 times, 1,464 pounds, about 37 bags. The gap is 17 bags, $100 to $240 a year, decided by a checkbox on a quote. Rinse water adds 1,500 to 4,000 gallons, $10 to $40 at most municipal rates.

Against a $1,000 to $3,000 installed purchase, the spread set by tank size and existing plumbing, those numbers look trivial. That is why nobody checks them, and why they run wrong for fifteen years. Line items are in the installed cost breakdown. If the salt itself is the objection, look hard at the alternative. Salt-free conditioners never regenerate because they never remove hardness. They change how scale forms, so a hardness test on the outlet reads the same as the inlet. Whether that trade is worth it is a live argument with evidence on both sides.
